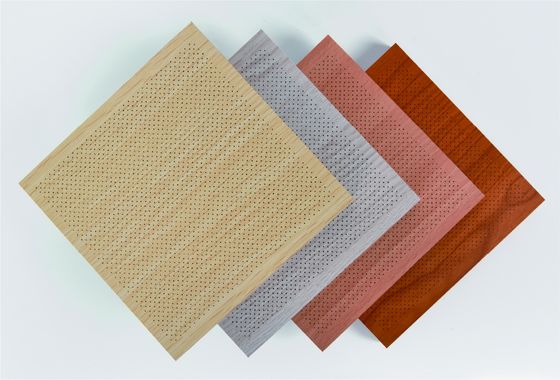

Micro Perdorated Acoustic Sheets Soundproofing Decorative Sound Absorption Panel
| Place of Origin | Guangzhou,china |
|---|---|
| Brand Name | WINEGO |
| Certification | CE,FSC,France A+,ASTM-E84 1,BS476 PART7 |
| Model Number | PAE4/0.7-12/15、PAE5/1-12/15、PAE8/1-12/15、PAE3/1-12/15、PAV4/0.7-12/15、PAV5/1-12/15、PAV8/1-12/15,other customized model |
| Minimum Order Quantity | 100 SQM |
| Packaging Details | W1200mm*L2400mm*T 14mm: 2 pieces per pack,the size of the single package is W1220m*L2415mm*T40mm,95.4kg per pack. W900mm*L1200mm*T 14mm: 4 pieces per pack,the size of the single package is W920m*L1220mm*T75mm,69.2kg per pack. W1200mm*L3000mm*T 15mm: 2 piec |
| Delivery Time | 2 weeks |
| Payment Terms | TT :50% deposit Balance before shipment |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | micro perdorated acoustic sheets soundproofing,nrc 0.8 micro perdorated acoustic sheets,micro perdorated decorative acoustic sound panels |
||
|---|---|---|---|
Product Description
NAME: SOUND ABSORPTION CUSTOMIZED DECORATIVE MICRO HOLE WOODEN ACOUSTIC WALLS CEILING PANEL HIGH TECH ECO FRIENDLY BOARD
Description:

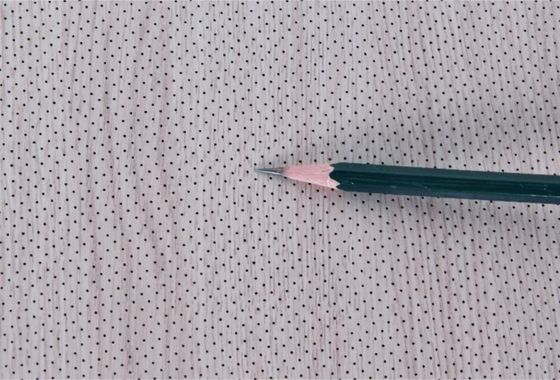

The micro-perforated acoustic panel adopts perforated sound-absorbing design, with micro-hole on the front, the hole diameter is 0.4-1mm.the distance between the center of the hole is 3-10mm, and the large hole is opened on the back to form a Helmhotz resonance system. The characteristics of high sound-resistance and micro-perforated make the micro-perforated acoustic panel have a good performance for sound absorption and noise reduction at medium and low frequencies.Micro-perforated acoustic panel is made of high-quality panel, which has the properties of environmental protection, fire-resistant, etc., and has a wide selection of finish and base materials, which can well meet the diversified acoustic and decorative needs of customers.
Feature:
Good sound absorption(NRC:0.8)
E1 grade eco-friendly
A grade fire-resistant
Multiple decorative choices
Comprehensive wall and ceiling installation system
Specifications:
| NAME | MICRO PERDORATED ACOUSTIC PANEL |

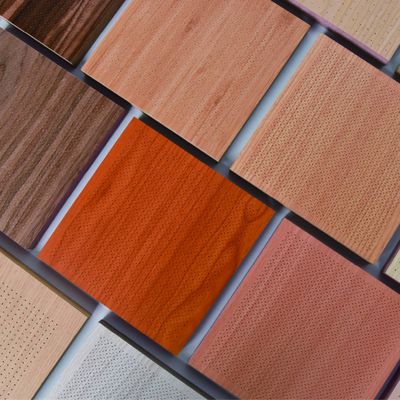

| FINISH | VENEER/MELAMINE/HPL FIRE-PROOF/PU PAINT |
| BASE MATERIALS | MDF/A GRADE MGO/SOLID WOOD |
| COLOR CHOICE | BLACK WALNUT VEN |
| MODEL | PAE4/0.7-12/15,PAE5/1-12/15,PAE8/1-12/15,PAE3/1-12/15,PAV4/0.7-12/15,PAV5/1-12/15,PAV8/1-12/15,other customized model |
| Size |
W590mm*L590/1200/2420mm*T15/18mm W1200mm*L590/1200/2420mm*T15/18mm
|
| environmental protection | E1 |
| warranty | 5 years |
| INSTALL | KEEL /NAIL GUN |
| MIN.ORDER | 100 SQM |
| PACKAGE DETAILS |
W1200mm*L2400mm*T 14mm: 2 pieces per pack,the size of the single package is W1220m*L2415mm*T40mm,95.4kg per pack. W900mm*L1200mm*T 14mm: 4 pieces per pack,the size of the single package is W920m*L1220mm*T75mm,69.2kg per pack. W1200mm*L3000mm*T 15mm: 2 pieces per pack,the size of the single package is W1220m*L3020mm*T47mm,83.2kg per pack. W1200mm*L2420mm*T 15mm: 2 pieces per pack,the size of the single package is W1220m*L2445mm*T50mm,71kg per pack.
LOGO service for big order |
| Delivery time | 2 weeks |
| Original place | Guangzhou,china |
| Payment term |
TT :50% deposit Balance before shipment
|
| Additional service | OEM |
| NRC | 0.8 |
| Certificate | CE,FSC,France A+,ASTM-E84 1,BS476 PART7 |
| Brand | WINEGO |
Application:
Multi-function hall
Opera house
Conference room
School classroom
Concert hall
Library
Gymnasium
Or places with high acoustic and aesthetic requirements in home life
Install method:
WALL INSTALLATION
Method :Wood battens installation system
Step 1:Fix the wood battens to level the wall(spacing at 400-600mm).
Step 2:Fill in fiberglass acoustic wool between wood battens.
Step 3:Fix the perforated acoustic panel on the wood battens with gun nails,and insert the wooden slat into the side groove.
Step 4:Repeat until the installation is completed, the joints between the panels are generally recommended to be 3-5mm, and the nailing position is on the side of the panel.
Step 5:Installation completion effect.
SUSPENDED CEILING INSTALLATION SYSTEM
Method A:Exposed Ceiling SC-E
Step 1:L hanger fixed with suspension rod and T-type main tee,then clip in cross tee and fix corner.
Step 2:Installation of exposed ceiling.
Step 3:Installation completion.
Method B:Tegular Ceiling SC-T
Step 1:L hanger fixed with suspension rod and T-type main tee,then clip in cross tee and fix corner.
Step 2:Installation of tegular ceiling.
Step 3:Installation completion.
Method C:Concealed Ceiling SC-C
Step 1:L hanger fixed with suspension rod and T-type main tee,then clip in cross tee and fix corner.
Step 2:Installation of concealed ceiling.
Step 3:Installation completion.
FAQ:
Q1. How does the Micro-perforated acoustic panel work?
A: When sound waves hit the surface of the panel, a portion of the sound waves will pass through small holes and enter the sound-absorbing material behind the panel, while another portion of the sound waves will be reflected back and gradually absorbed after multiple reflections, thereby reducing the noise and echo in the space.
Q2. What scenarios does the Micro-perforated acoustic panel apply to?
A: Micro-perforated acoustic panel applies to various scenarios that require sound absorption and noise reduction,such as Multi-function hall,Opera house ,Conference room,School classroom,Concert hall,Library,Gymnasium and so on.
Q3. What are the base materials? Which is more eco-friendly?
A:The base materials of this product includes MDF,A grade MGO board,solid wood and black HDF.Regarding environmental performance, pine eco-friendly MDF and solid wood are the most recommended.
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive.
Cargo will ship by sea shipping or airline according to customer request and order quantity. It takes 2weeks or 4weeks as per the destination.
Q5. How to proceed an order for perforated acoustic panel?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on your package ?
A: Yes. Please inform us formally before our production.
If your quantity reach to 1000pcs,we will provide free logo service.
And less quantity ,we provide charge service.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How many people are there in the company in total?
A:Our company has about 100 office and factory personnel in total.
Q9: Can this product be customized?
A:Yes,We can customize the size, color, hole size, and spacing of Micro-perforated acoustic panels according to customer needs to meet the needs of different scenes and decorative styles.
Q10:Any certificate for perforated acoustic panel?
A:FSC.CE,France A+,ASTM-E84 1,BS476 PART7.
