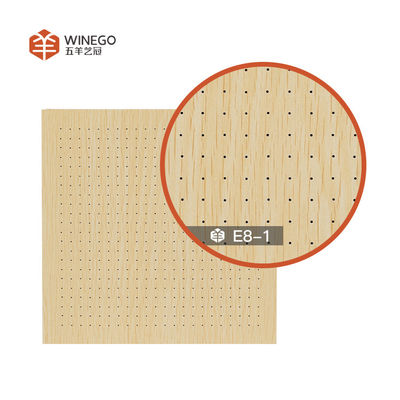

Micro Perforated Decorative Acoustic Wood Panels Sound Proof 12mm 15mm 18mm Thick

  • Micro Perforated Decorative Acoustic Wood Panels Sound Proof 12mm 15mm 18mm Thick
  • Micro Perforated Decorative Acoustic Wood Panels Sound Proof 12mm 15mm 18mm Thick
  • Micro Perforated Decorative Acoustic Wood Panels Sound Proof 12mm 15mm 18mm Thick
Place of Origin China
Brand Name Winego
Certification ISO9001 / FSC / Sound absorption coefficient Test Report
Model Number PAE8-1
Minimum Order Quantity 200 sqm
Price USD19.99-30.99 PER SQM
Packaging Details Carton packing at 122*244*4cm per carton or other
Delivery Time 21 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 100000 Square Meter/Square Meters per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Micro-perforated Acoustic Panel Size 600/1200*600/1200/2400mm
Thickness 12/15/18mm Or Other Base Material Standard E1MDF/ECO MDF/FR MDF/HDF
Finish Melamine/Veneer/HPL Back Fleece/Black Fabric/Black Sound Absorbing Fleece/Fiberglass Felt
Function Decorative And Sound Absorption NRC 0.7
Highlight

18mm decorative acoustic wood panels

,

sound proof micro perforated wood panels

,

15mm perforated wood acoustic wall panels
Leave a Message
Product Description

Micro- Perforated Wood Sound Absorption Decorative Acousitic Panel



Description:



Winego Micro-Perforated acoustic panels are constructed with standard MDF or fire rated MDF that are layered with micro-perforated wood veneers/HPL /Melamine. Designed to provide the aesthetics of a solid wood panel, the micro-perforations disappear at a distance. Exceptional looks, features and performance insure interior spaces sound and feel comfortable for occupants to enjoy without feeling fatigue or strain during their time using the space.

Winego Micro perforated acoustic panels can be installed on walls or ceilings to achieve a wide spectrum of sound absorption. It should be noted that sound absorption performance of acoustic panels is also affected by any air gap behind the installed panels as well as the type & thickness of sound absorbing insulation fiberglass wool installed behind the panels.





Feature:



Core: Stand MDF or Fire Rated MDF or Black HDF
Thickness: 15/18/21mm
Panel Sizes: 600/1200x600/1200/2400
Special Sizes & Shapes: Available Upon Request
Standard Micro-Perf Options: 0.7MM & 1MM
Edge : Square/Chamfer/Groove and Tongue
Finish: Wood Veneer, HPL and mELAMINE
Back: Black fleece/ Fiberglass fleece/Soundtex sound absorpting fleece
Certifications: CE/FSC
Test report: ECO friendly and sound absorption performance also flame retardant test report
Sound Absorption performance: NRC0.8


Installation options
Our microperforated acoustic panels can be manufactured in several versions, to be installed on walls or ceilings. In both cases you should leave behind a space as rear cavity filled with a low density mineral fibre glass wool panel to help improve the optimal absorption coefficient.



Specificatins:



Name Micro- Perforated Acouostic Panel
Base Materials MDF/FR MDF/HDF
Finish Veneer/Melamine/HPL fire-proof
Model PAVE8/1
Size W 600/1200*L 600/1200/2400*T 15/18mm
Environmental protection E1 or E0
Warranty 2years
Installation Keel /Wooden batten
MIN. order quantity 200 SQM
Packing details

W1200mm*L1200mm*T 15mm: 4 pieces per pack,the size of the single package is W1225mm*L1225mm*T100mm,48.8kg per pack.

LOGO service for big order
Delivery time 3 weeks
Original place Guangzhou,China
Payment term

TT :50% deposit

Balance before shipment
Additional service OEM
NRC 0.7
Certificate CE,FSC,France A+,ASTM-E84 1,BS476 PART7
Brand Winego



Micro Perforated Decorative Acoustic Wood Panels Sound Proof 12mm 15mm 18mm Thick 0





Application:


Multi-functional hall
Conference room
Lectural hall
Opera house
Concert hall
Home theater



Micro Perforated Decorative Acoustic Wood Panels Sound Proof 12mm 15mm 18mm Thick 1









Install method:


WALL INSTALLATION
Method :Wood battens installation system
Step 1:Fix the wood battens to level the wall(spacing at 400-600mm).
Step 2:Fill in fiberglass acoustic wool between wood battens.
Step 3:Fix the perforated acoustic panel on the wood battens with gun nails,and insert the wooden slat into the side groove.
Step 4:Repeat until the installation is completed, the joints between the panels are generally recommended to be 3-5mm, and the nailing position is on the side of the panel.
Step 5:Installation completion effect.



Micro Perforated Decorative Acoustic Wood Panels Sound Proof 12mm 15mm 18mm Thick 2
