Micro Perforated Sound Absorption Acoustic Panels For Medium To Low Frequencies

Micro-Perforated Wooden Sound Absorption Acoustic Panel for Medium to Low Frequencies

Description:

WINEGO Micro Perforated Wooden Timber Sound Absorption Acoustic Panels are engineered for superior sound absorption, perfect for medium to low frequencies.

Feature:

The theory of acoustic structure of micro-perforated plate is to punch holes on the plate with a diameter less than or equal to 1.0mm, the perforation rate of 1-8% of the composite pore structure, leaving a certain amount of cavity at the back (50-100mm), constituting a micro-perforated plate acoustic structure, which is a low acoustic quality, high acoustic resistance resonance acoustic structure. Each cavity through the Helmholtz resonance principle to convert sound energy into heat energy consumption, so as to achieve the effect of sound absorption.

Effective sound absorption: The micro- perforated acoustic panels is able to convert sound waves into tiny vibrational energies and reduce noise levels through absorption, scattering and reflection. This effective sound absorption improves the acoustic environment of the room and let people can hear clear.

Aesthetically pleasing and practical: Micro-perforated acoustic panels are simple and aesthetically pleasing, and can be customized in size and finishes as required. Their surfaces can be finished with different textures and patterns to meet the decorative needs of different places. At the same time, micro- perforated acoustic panels can also be integrated with lighting equipment to provide good lighting effects.

Installation options
Our micro-perforated acoustic panels can be manufactured in several versions, to be installed both on walls or on ceilings. In both cases you should leave behind a space as rear cavity filled with the low density fibre glass wool panel to help improve the optimal absorption coefficient.

Specificatins:

Application:

Multi-functional hall
Conference room

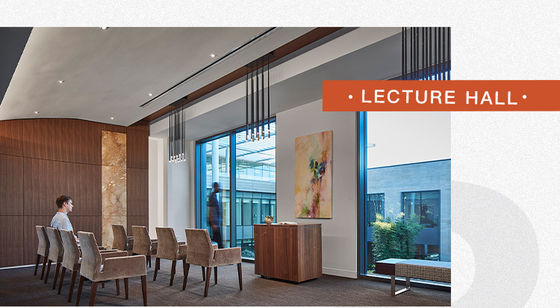

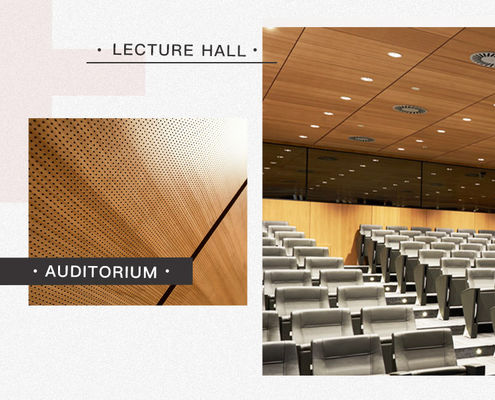

Lectural hall
Opera house
Concert hall
Home theater

Install method:

WALL INSTALLATION
Method :Wood battens installation system
Step 1:Fix the wood battens to level the wall(spacing at 400-600mm).
Step 2:Fill in fiberglass acoustic wool between wood battens.
Step 3:Fix the perforated acoustic panel on the wood battens with gun nails,and insert the wooden slat into the side groove.
Step 4:Repeat until the installation is completed, the joints between the panels are generally recommended to be 3-5mm, and the nailing position is on the side of the panel.
Step 5:Installation completion effect.
