MDF Timber Grooved Acoustic Wall Panels For Interior Music Hall Decor E1 E0 Protection

MDF Timber Grooved Acoustic Panel Interior Music Hall Wood Wall Paneling

Description:

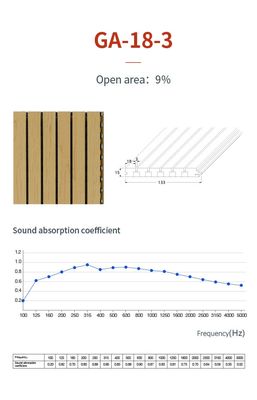

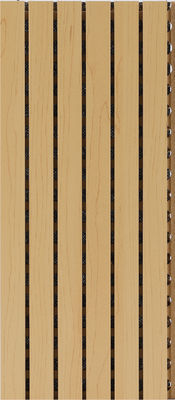

Winego MDF Timber Grooved Acoustic Panel Interior Music Hall Wood Wall Paneling are designed with a classic yet contemporary approach. Featuring a surface-slotted and back-perforated structure, these panels excel in mid-to-low frequency sound absorption with an NRC of 0.8. Perfect for theaters and auditoriums, they also fit modern linear design aesthetics, ensuring high fire-proof standards and environmental safety.

Feature:

1. Efficient sound absorption: grooved wood acoustic panels use a specially designed groove structure, which can effectively increase the surface area of the contact between the sound and the material, greatly improve the sound absorption effect, reduce echo and noise, create a quiet and comfortable acoustic environment. The grooved acoustic panel 's noise reduction coefficient  NRC is 0.9 , especially to absorb the low and midum sound.

2. Customized Finishes: Choose from melamine, veneer, HPL, and others.

3. Versatile Applications: Suitable for various spaces including offices, commercial areas, and so on. Perfect for theaters and auditoriums, they also fit modern linear design aesthetics, ensuring high fire-proof standards and environmental safety.

4. Ease of installation: Grooved wood acoustic panels are usually installed in a combination of ways, which can be relatively simple to install on walls or ceilings, saving installation time and costs.

Specificatins:

Application:

Multi-functional hall
Conference room
Auditorium
Opera house
Concert hall
TV Station
Music hall
Piano room

How to install:

Method A:

1. Fix keel on wooden battens with gun nails.

2. Insert clips into the keel to secure panels.

3. Install from left to right and bottom to top.

4. Adjust clips if needed for alignment.

5. Leave a 3mm gap between panel heads.

Method B:

1. Level the wall with wooden battens.

2. Fill with fiberglass acoustic wool.

3. Fix panels on battens with gun nails.

.

FAQ:

1. What sizes are available?

- Standard sizes are 133*2440 mm and 197*2440 mm with thicknesses of 12mm, 15mm, and 18mm.

2. What materials are the panels made from?

- Options include MDF, MgO boards, carbon fiber boards, and solid wood.

3. Can I customize the panel finishes?

- Yes, finishes can be customized with melamine, veneer, HPL, and more.

4. What is the NRC of these panels?**

- The NRC can reach up to 0.8, providing excellent sound absorption for both commercial and privated space.
