Micro-perforated Acoustic Panel Eco-Friendly Noise Control With Custom Finishes

  • Micro-perforated Acoustic Panel Eco-Friendly Noise Control With Custom Finishes
  • Micro-perforated Acoustic Panel Eco-Friendly Noise Control With Custom Finishes
  • Micro-perforated Acoustic Panel Eco-Friendly Noise Control With Custom Finishes
  • Micro-perforated Acoustic Panel Eco-Friendly Noise Control With Custom Finishes
Place of Origin Guangzhou,china
Brand Name WINEGO
Certification CE,FSC,France A+
Model Number PAV2.2/0.5-12/15
Minimum Order Quantity 100 SQM
Packaging Details W230m*L2430mm*T130mm,27.75kg per pack.LOGO service for big order
Delivery Time 2 weeks
Payment Terms TT :50% deposit Balance before shipment
Supply Ability 10000sqm per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Sound Absorption 0.8 NRC Material MDF
Size W600/1200*L600/1200/2400*T15/18mm Finish Veneer/Melamine/HPL Fire-proof/PU Paint
Type Acoustic Panel Packing Carton
Acoustic Performance Highly Effective Application Auditorium, Conference Room, Recording Studio, Home Theater
Highlight

Noise Control Micro Perforated Acoustic Panel

,

Custom Finishes Micro Perforated Acoustic Panel

,

Eco-Friendly Micro Perforated Acoustic Panel
Leave a Message
Product Description

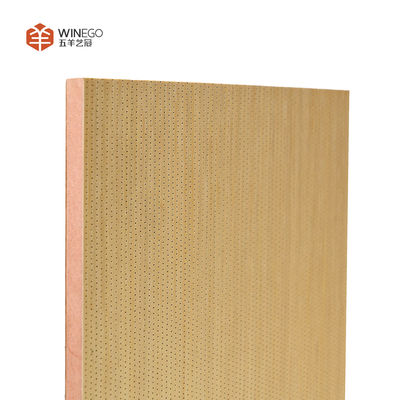

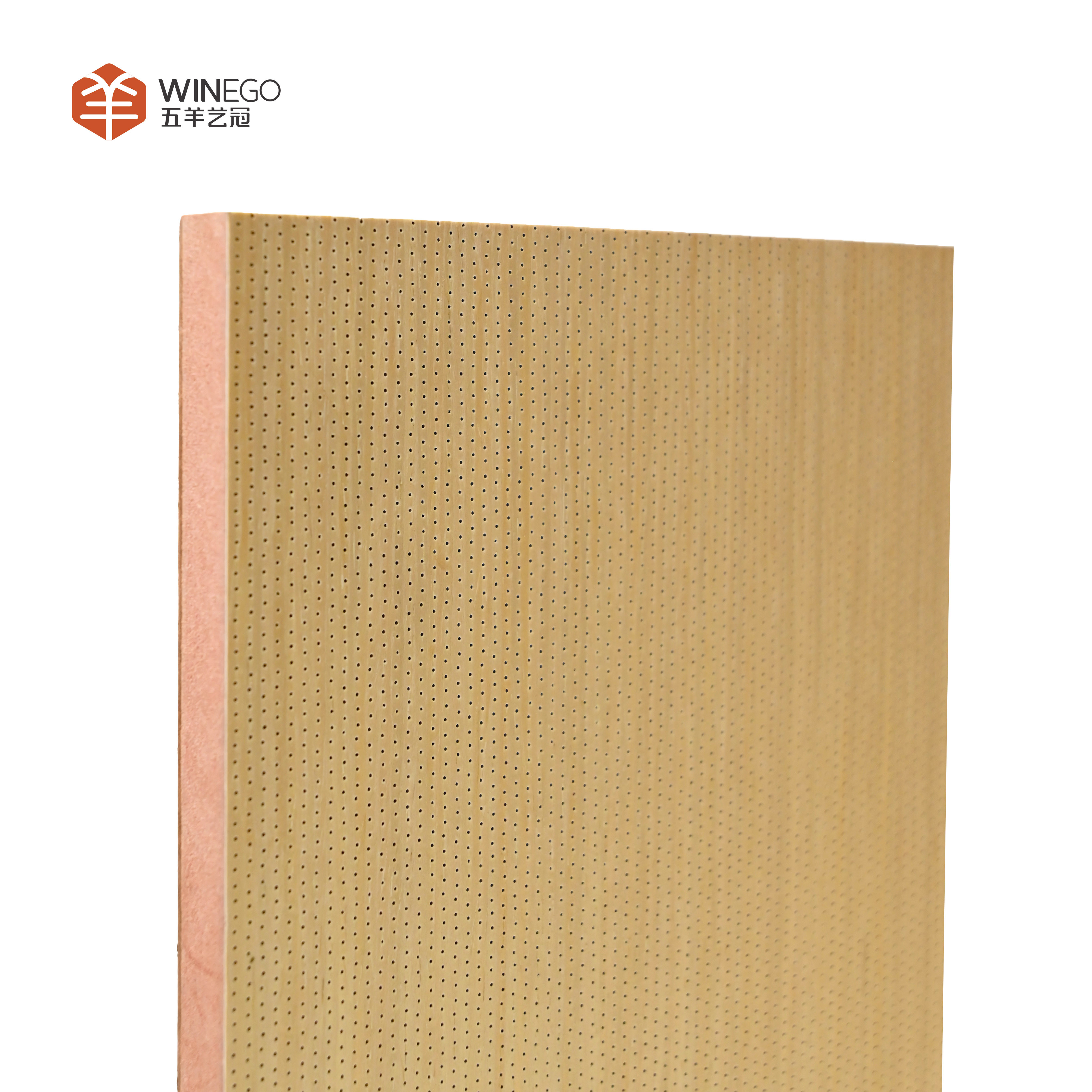

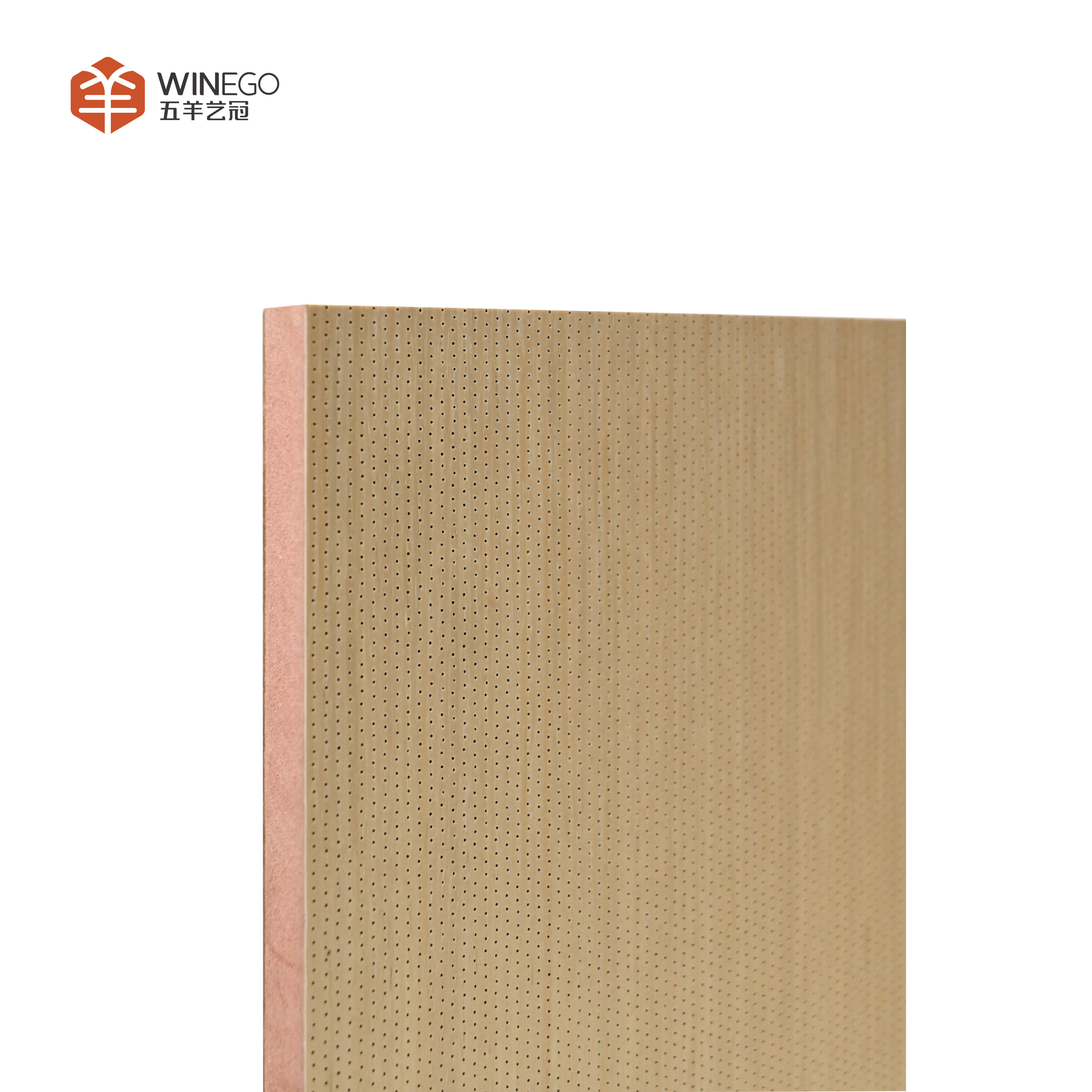

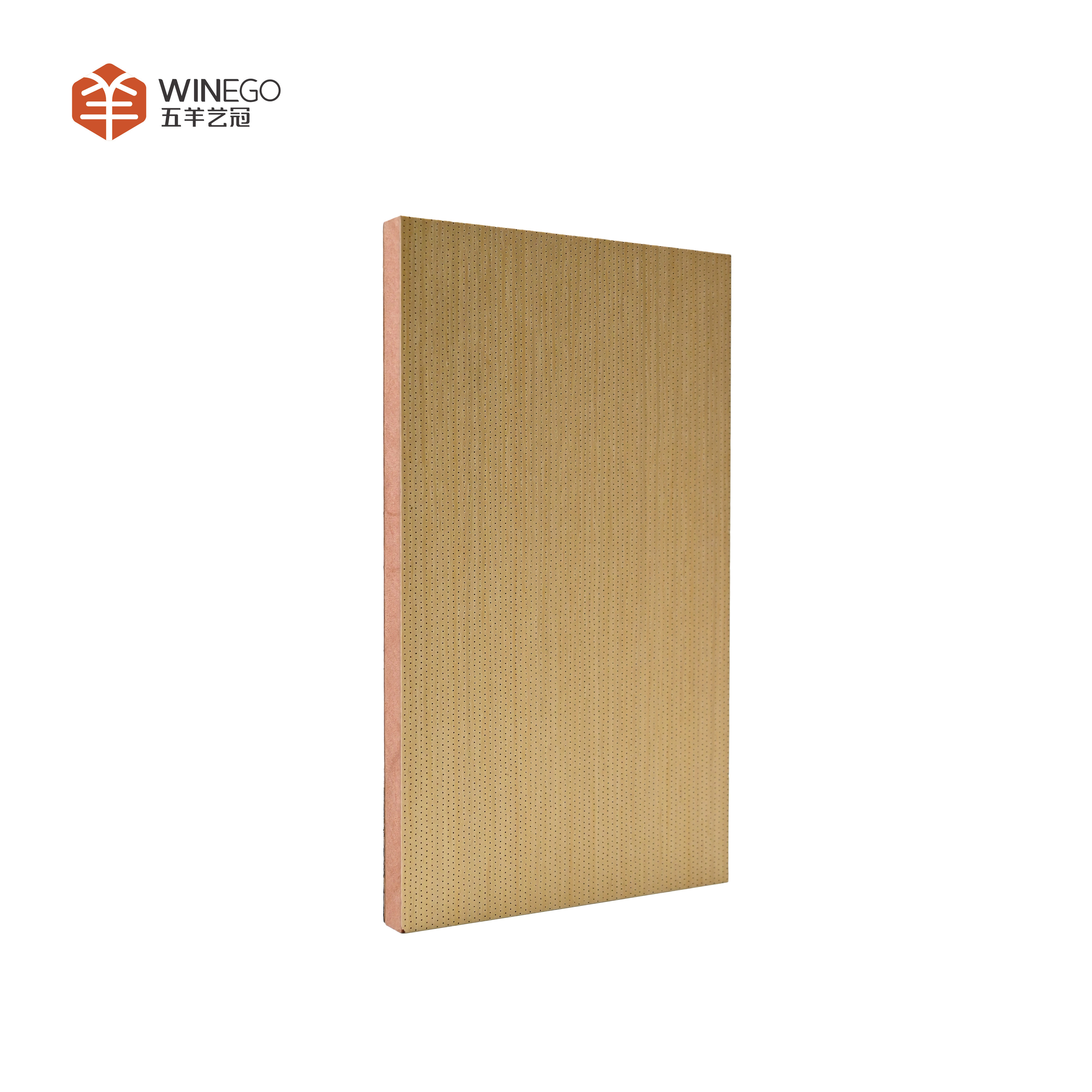

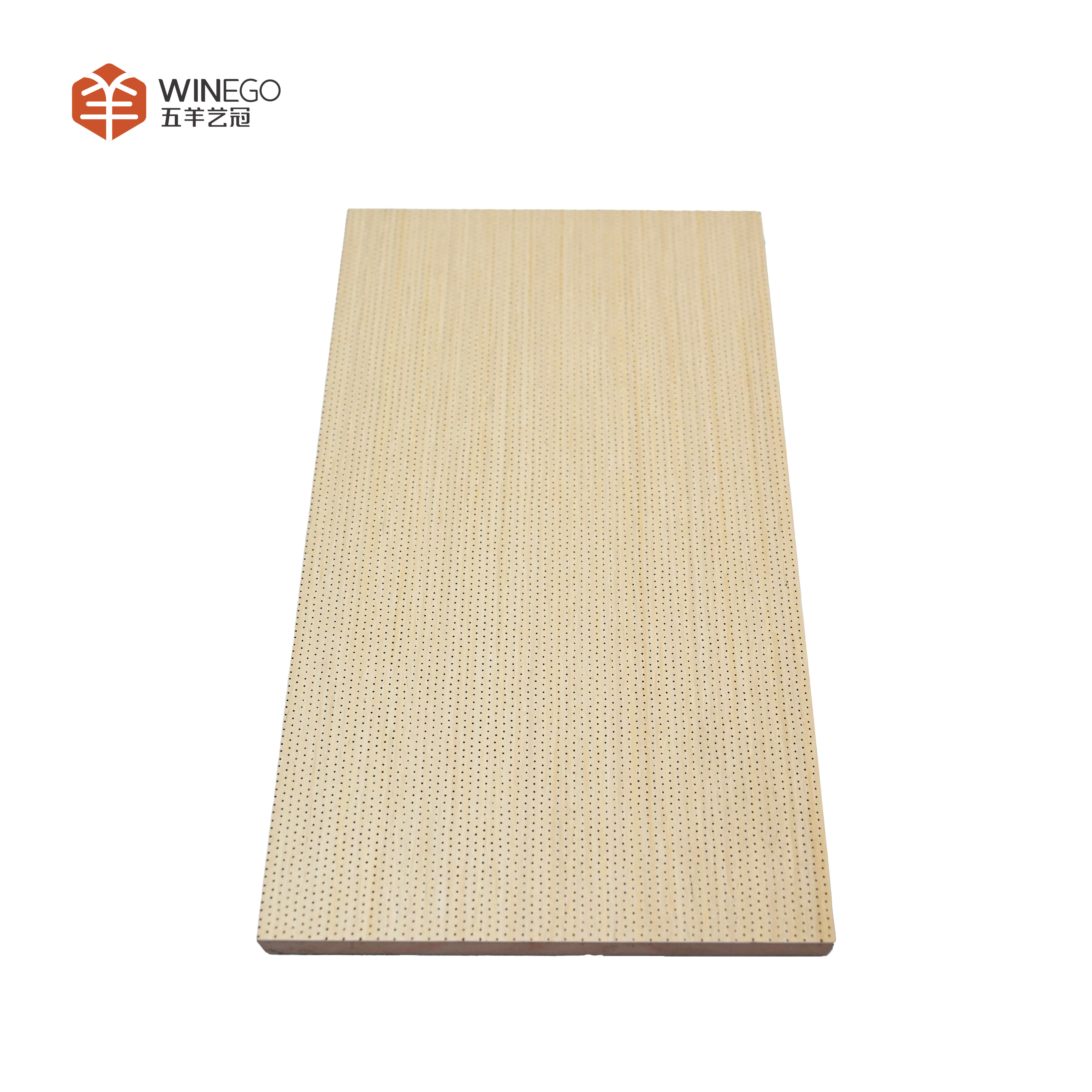

Micro-perforated Acoustic Panel Eco-Friendly Noise Control with Custom Finishes





Description:



Our micro-perforated acoustic panel is engineered to deliver superior sound absorption while maintaining a sleek, modern appearance. The front surface features micro holes (0.4 to 1mm) paired with rear holes to create a Helmholtz resonance system, effectively reducing noise in medium and low frequencies. Constructed from high-quality density board, it offers a range of finishes to suit any aesthetic preference. Its eco-friendly and fire-resistant properties make it ideal for sustainable and safe environments. Whether for offices, homes, or public spaces, this panel ensures optimal acoustic comfort and visual appeal. The panel's easy installation process and durable construction further enhance its practicality, making it a versatile choice for various applications. From reducing echo in large halls to creating quiet work spaces, this panel delivers unmatched performance.



Feature:



Noise Reduction: Effective sound absorption for balanced acoustics.





Customizable Finishes: Multiple options to match any interior style.





Sustainable Choice: Eco-friendly materials and fire-resistant properties.





Easy Installation: Designed for quick and hassle-free setup.





Durable Construction: Built to withstand wear and tear.




Specifications:

NAME Super Micro-Perforated Acoustic Panel
FINISH Veneer/Melamine/HPL fire-proof
BASE MATERIALS MDF/A grade MGO/Solid wood
MODEL

PAV2.2/0.5-12/15
Size

W590/1200*L590/1200/2420*T15/18mm
environmental protection E1
warranty 2 years
INSTALL Keel/Nail gun
MIN.ORDER  100 SQM
PACKAGE DETAILS

W200mm*L2400mm*T 15mm: 6 pieces per pack,the size of the single package is W230m*L2430mm*T130mm,27.75kg per pack.

W1200mm*L1200mm*T 15mm: 4 pieces per pack,the size of the single package is W1225mm*L1225mm*T100mm,48.8kg per pack.

LOGO service for big order
Delivery time  2 weeks
Original place  Guangzhou,china
Payment term

TT :50% deposit
Balance before shipment
Additional service  OEM
NRC 0.8
Certificate CE,FSC,France A+
Brand WINEGO
Project Solution Capability Project Design,3D model design,Graphic design,Material Production,Shipping and Deliver
Design Style Modern
After-sale Service Online technical support,Return and Replacement,Installation Instruction





Micro-perforated Acoustic Panel Eco-Friendly Noise Control With Custom Finishes 0Micro-perforated Acoustic Panel Eco-Friendly Noise Control With Custom Finishes 1Micro-perforated Acoustic Panel Eco-Friendly Noise Control With Custom Finishes 2Micro-perforated Acoustic Panel Eco-Friendly Noise Control With Custom Finishes 3Micro-perforated Acoustic Panel Eco-Friendly Noise Control With Custom Finishes 4Micro-perforated Acoustic Panel Eco-Friendly Noise Control With Custom Finishes 5

Wall Installation Process:

Wood Battens Installation System

  1. Step 1: Secure the wood battens onto the wall, ensuring they are level, with spacing between them of 400-600mm.

  2. Step 2: Insert fiberglass acoustic wool between the wood battens for sound absorption.

  3. Step 3: Attach the perforated acoustic panels to the battens using gun nails, and place the wooden slats into the side grooves.

  4. Step 4: Continue the process, maintaining a 3-5mm gap between panels. Nails should be placed along the edges of the panels.

  5. Step 5: Finalize the installation and ensure everything is in place.

Suspended Ceiling Installation System:

Method A: Exposed Ceiling SC-E

  1. Step 1: Fix the L-hanger using a suspension rod and T-type main tee, then clip in the cross tee and secure the corners.

  2. Step 2: Proceed with the installation of the exposed ceiling.

  3. Step 3: Complete the installation.

Method B: Tegular Ceiling SC-T

  1. Step 1: Attach the L-hanger to the suspension rod, followed by the T-type main tee, cross tee, and corners.

  2. Step 2: Install the tegular ceiling panels.

  3. Step 3: Finish the installation.

Method C: Concealed Ceiling SC-C

  1. Step 1: Fix the L-hanger with suspension rods and main tee, then clip in the cross tee and secure the corners.

  2. Step 2: Install the concealed ceiling panels.

  3. Step 3: Complete the installation process.
