Micro-perforated Acoustic Panel High Performance With Stylish Finishes

  • Micro-perforated Acoustic Panel High Performance With Stylish Finishes
  • Micro-perforated Acoustic Panel High Performance With Stylish Finishes
  • Micro-perforated Acoustic Panel High Performance With Stylish Finishes
  • Micro-perforated Acoustic Panel High Performance With Stylish Finishes
  • Micro-perforated Acoustic Panel High Performance With Stylish Finishes
  • Micro-perforated Acoustic Panel High Performance With Stylish Finishes
Place of Origin Guangzhou,china
Brand Name WINEGO
Certification CE,FSC,France A+
Model Number PAV2.2/0.5-12/15
Minimum Order Quantity 100 SQM
Packaging Details W230m*L2430mm*T130mm,27.75kg per pack.LOGO service for big order
Delivery Time 2 weeks
Payment Terms TT :50% deposit Balance before shipment
Supply Ability 10000sqm per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Sound Absorption 0.8 NRC Material MDF
Size W600/1200*L600/1200/2400*T15/18mm Finish Veneer/Melamine/HPL Fire-proof/PU Paint
Type Acoustic Panel Packing Carton
Acoustic Performance Highly Effective Application Auditorium, Conference Room, Recording Studio, Home Theater
Highlight

High Performance Acoustic Panel

,

MDF Micro Perforated Acoustic Panel

,

High Performance Micro Perforated Acoustic Panel
Leave a Message
Product Description

Micro-perforated Acoustic Panel High Performance with Stylish Finishes





Description:



Our micro-perforated acoustic panel is designed to provide exceptional sound absorption while enhancing the visual appeal of any space. The front surface features micro holes (0.4 to 1mm) that work with rear holes to form a Helmholtz resonance system, effectively reducing noise in medium and low frequencies. Crafted from high-density board, it offers a range of finishes to match any interior design. Its eco-friendly and fire-resistant properties ensure safety and sustainability, making it an ideal choice for both residential and commercial applications. The panel's easy installation and durable construction further add to its appeal. Whether for reducing background noise in offices or creating a serene atmosphere in homes, this panel delivers unmatched acoustic performance and aesthetic value.



Feature:



Superior Soundproofing: Effective noise reduction for balanced acoustics.





Stylish Finishes: Elegant options to enhance any space.





Eco-Friendly Materials: Safe and sustainable construction.





Customizable Perforations: Tailored sound absorption characteristics.




Specifications:

NAME Super Micro-Perforated Acoustic Panel
FINISH Veneer/Melamine/HPL fire-proof
BASE MATERIALS MDF/A grade MGO/Solid wood
MODEL

PAV2.2/0.5-12/15
Size

W590/1200*L590/1200/2420*T15/18mm
environmental protection E1
warranty 2 years
INSTALL Keel/Nail gun
MIN.ORDER  100 SQM
PACKAGE DETAILS

W200mm*L2400mm*T 15mm: 6 pieces per pack,the size of the single package is W230m*L2430mm*T130mm,27.75kg per pack.

W1200mm*L1200mm*T 15mm: 4 pieces per pack,the size of the single package is W1225mm*L1225mm*T100mm,48.8kg per pack.

LOGO service for big order
Delivery time  2 weeks
Original place  Guangzhou,china
Payment term

TT :50% deposit
Balance before shipment
Additional service  OEM
NRC 0.8
Certificate CE,FSC,France A+
Brand WINEGO
Project Solution Capability Project Design,3D model design,Graphic design,Material Production,Shipping and Deliver
Design Style Modern
After-sale Service Online technical support,Return and Replacement,Installation Instruction

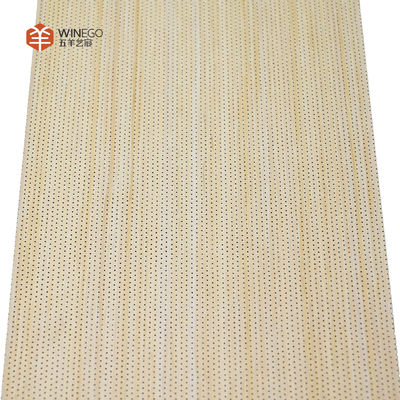

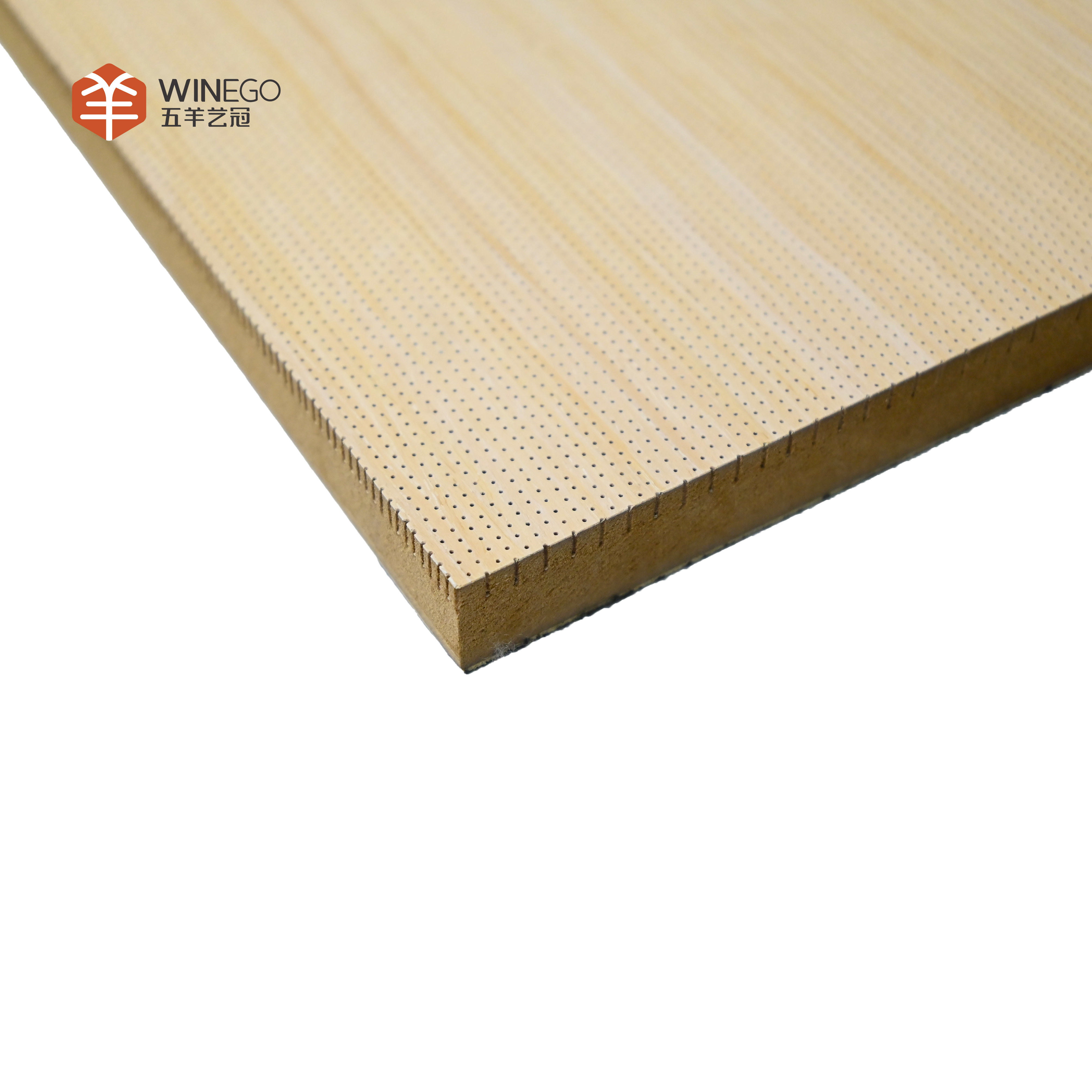

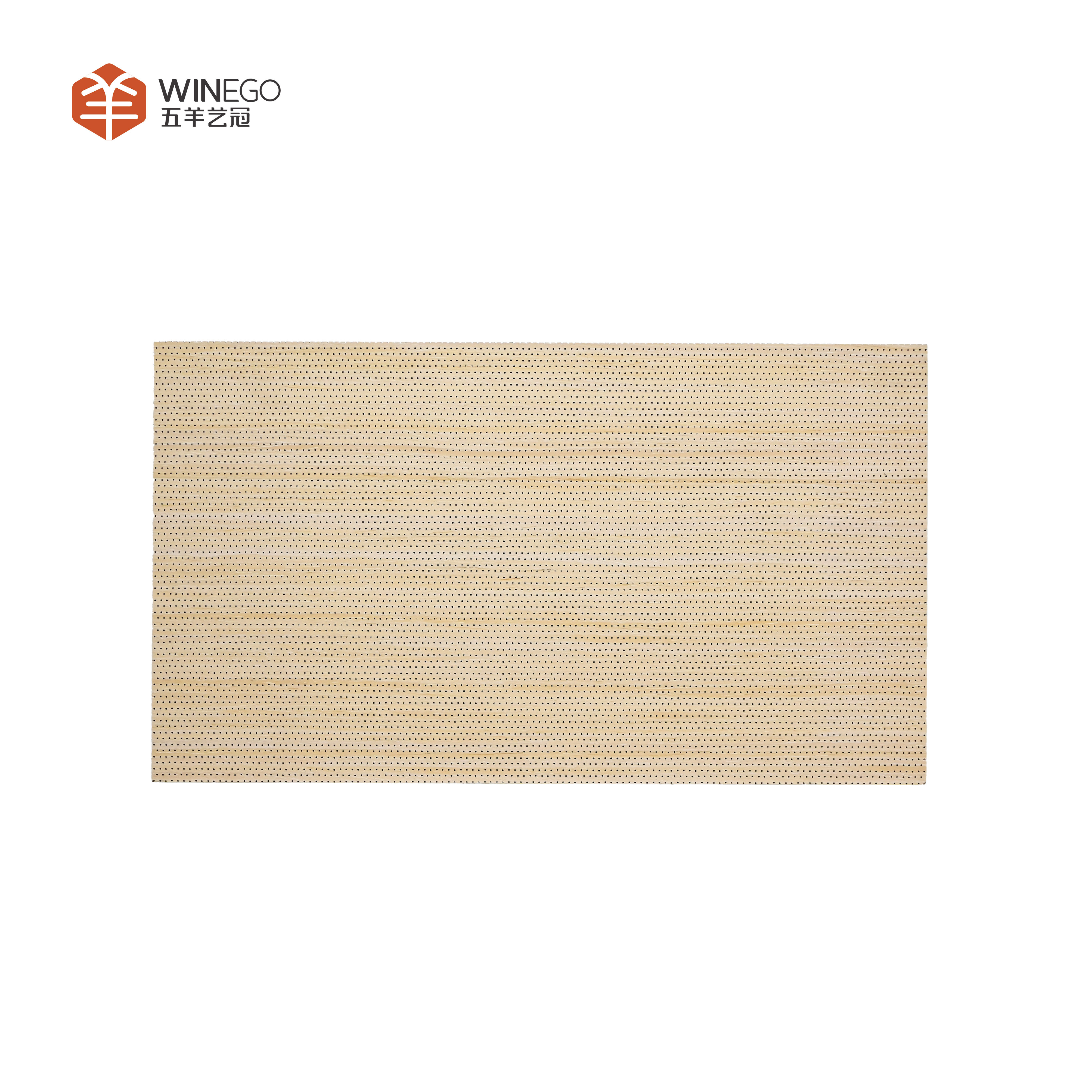

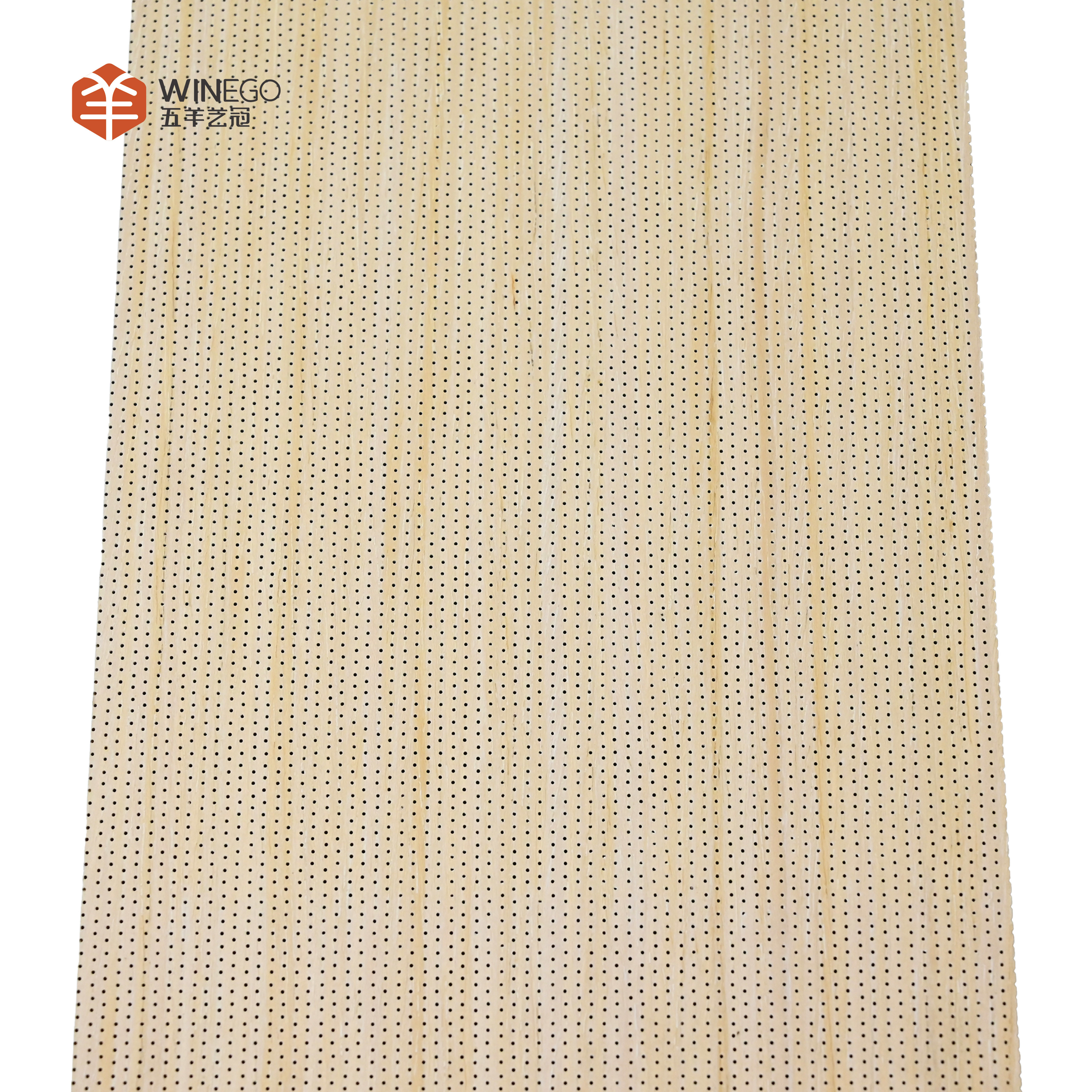

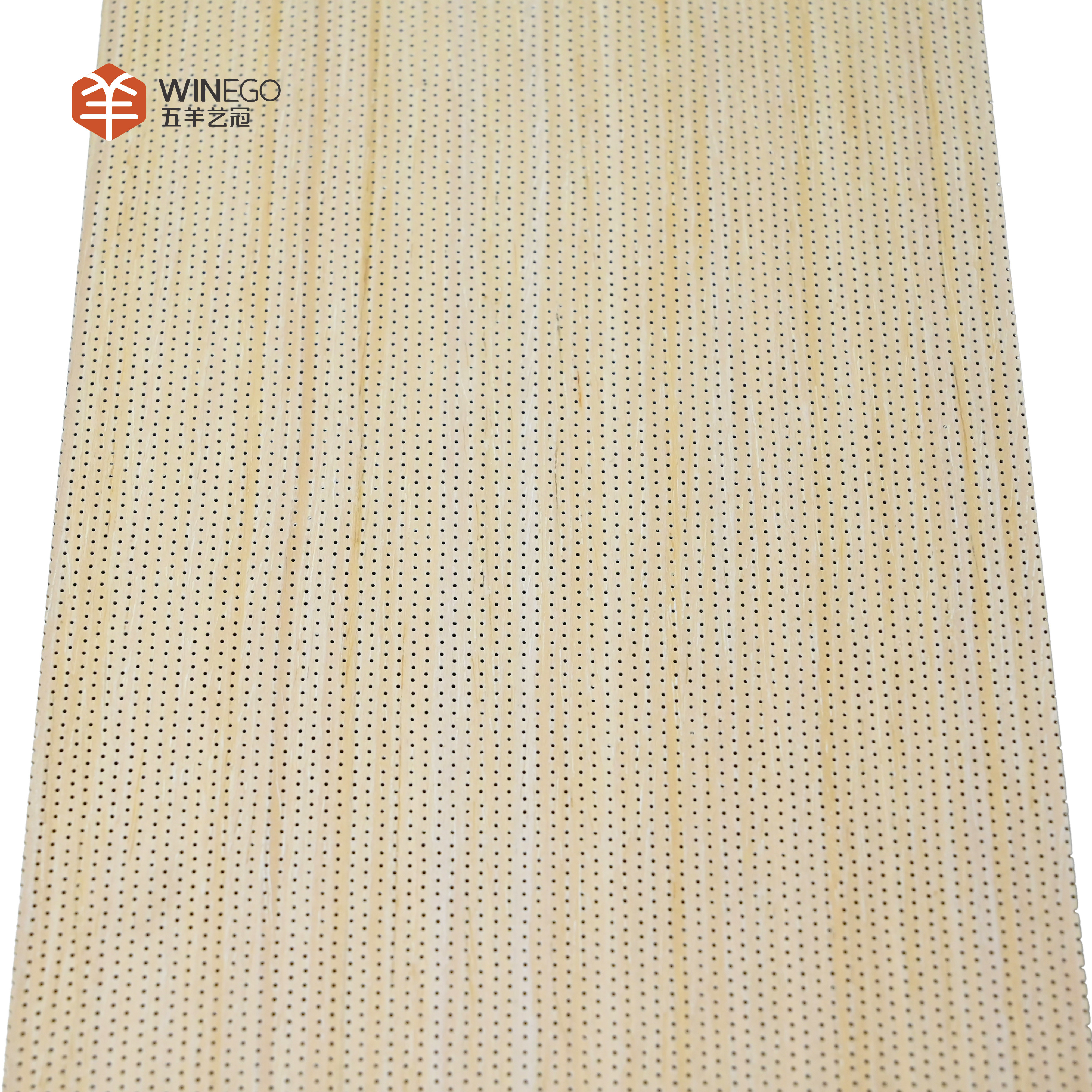

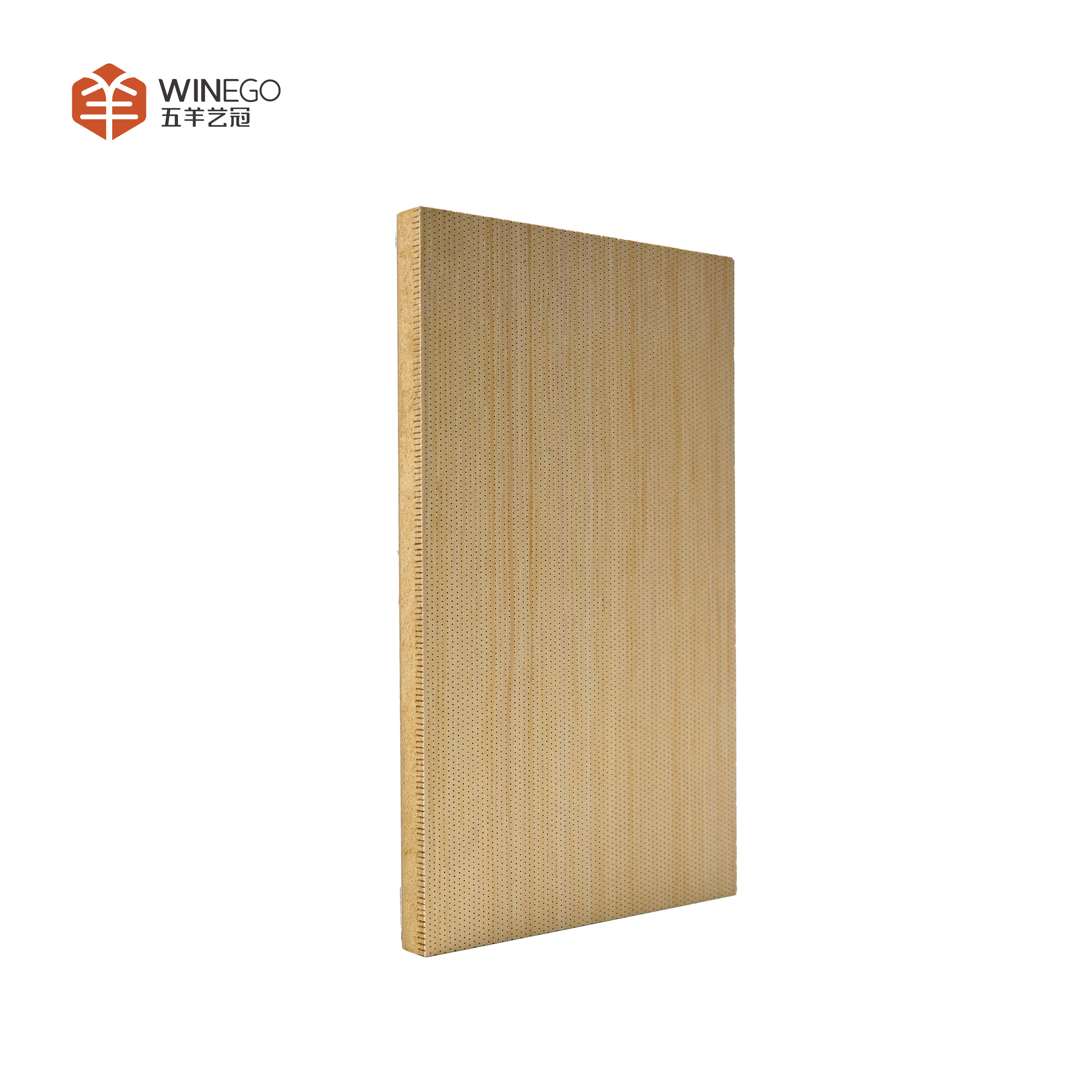

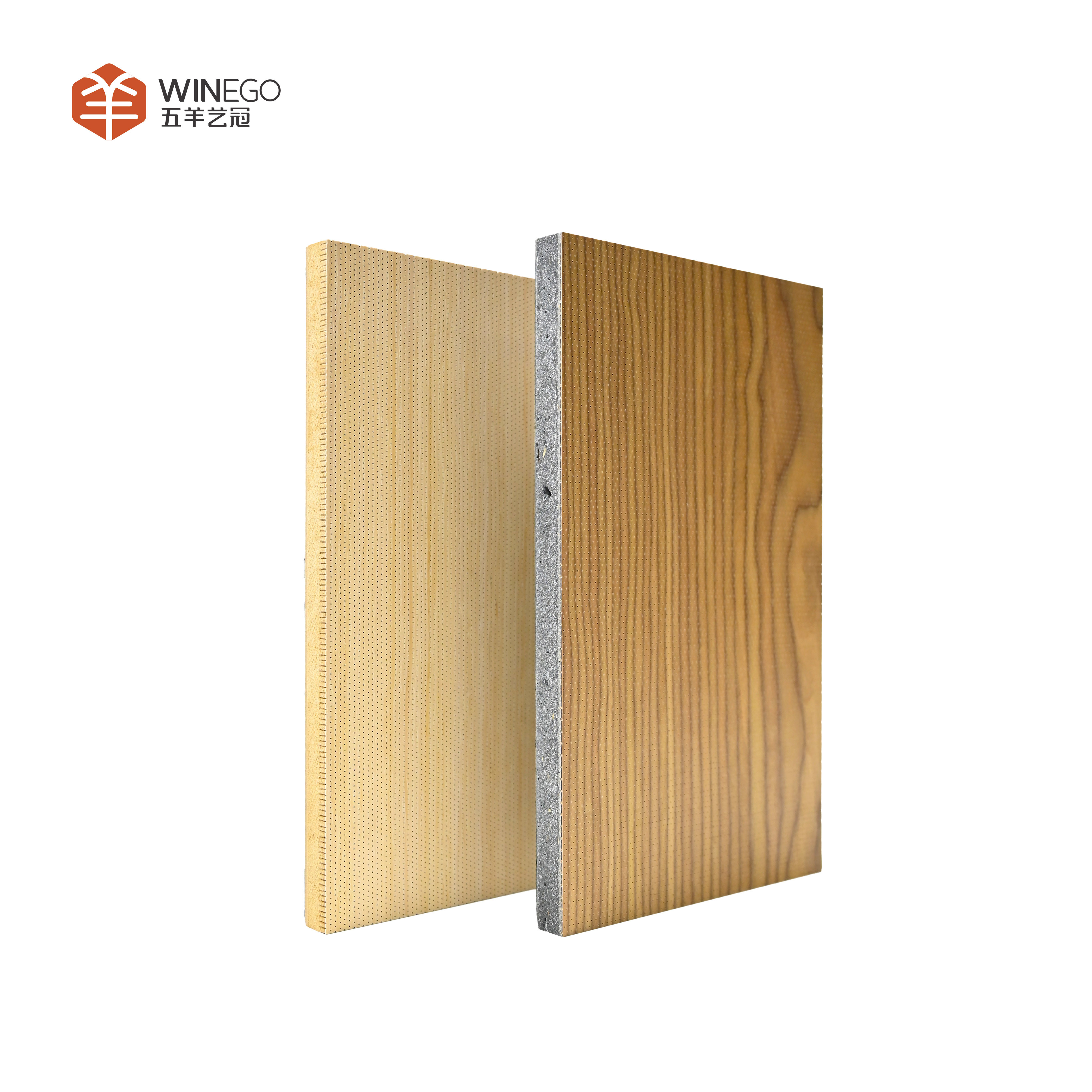

Micro-perforated Acoustic Panel High Performance With Stylish Finishes 0Micro-perforated Acoustic Panel High Performance With Stylish Finishes 1Micro-perforated Acoustic Panel High Performance With Stylish Finishes 2Micro-perforated Acoustic Panel High Performance With Stylish Finishes 3Micro-perforated Acoustic Panel High Performance With Stylish Finishes 4Micro-perforated Acoustic Panel High Performance With Stylish Finishes 5

Wall Installation Process:

Wood Battens Installation System

  1. Step 1: Secure the wood battens onto the wall, ensuring they are level, with spacing between them of 400-600mm.

  2. Step 2: Insert fiberglass acoustic wool between the wood battens for sound absorption.

  3. Step 3: Attach the perforated acoustic panels to the battens using gun nails, and place the wooden slats into the side grooves.

  4. Step 4: Continue the process, maintaining a 3-5mm gap between panels. Nails should be placed along the edges of the panels.

  5. Step 5: Finalize the installation and ensure everything is in place.

Suspended Ceiling Installation System:

Method A: Exposed Ceiling SC-E

  1. Step 1: Fix the L-hanger using a suspension rod and T-type main tee, then clip in the cross tee and secure the corners.

  2. Step 2: Proceed with the installation of the exposed ceiling.

  3. Step 3: Complete the installation.

Method B: Tegular Ceiling SC-T

  1. Step 1: Attach the L-hanger to the suspension rod, followed by the T-type main tee, cross tee, and corners.

  2. Step 2: Install the tegular ceiling panels.

  3. Step 3: Finish the installation.

Method C: Concealed Ceiling SC-C

  1. Step 1: Fix the L-hanger with suspension rods and main tee, then clip in the cross tee and secure the corners.

  2. Step 2: Install the concealed ceiling panels.

  3. Step 3: Complete the installation process.
