Premium Fire-Rated Grooved Acoustic Panels for High-Performance Sound Spaces
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | Winego |
| Certification | CE, FSC, France A+,ISO9001 |
| Model Number | GA-13/3 |
| Minimum Order Quantity | 200 |
| Price | USD7.88-18.88 PER sqm |
| Packaging Details | 249*15*18cm with 10pcs per carton |
| Delivery Time | 15-21 working days |
| Supply Ability | 10000sqm per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Grooved MDF Wood Fiber Acoustic Panel | Base Material | Fire Retardand MDF/ Standard MDF / A GRADE BOARDE |
|---|---|---|---|
| Surface Finish | Veneer / Melamine / HPL | Back | Black Fleece / Black Fabric/Soundtex Fleece |
| Standard Size | 133/197*2440mm Standard Other Customized | Thickness | 15/18/21mm |
| NRC | 0.85 | Type | Sound Absorption |
| Application | Theater,Office, Auditorium Etc. | Installation | By Nail Gun Or Clip System |
| Environmental Protection | E1 Or E0 | ||
| Highlight | Fire Rated Grooved Acoustic Panels,High Performance Grooved Acoustic Panels,Premium Grooved Acoustic Panels |
||
Product Description

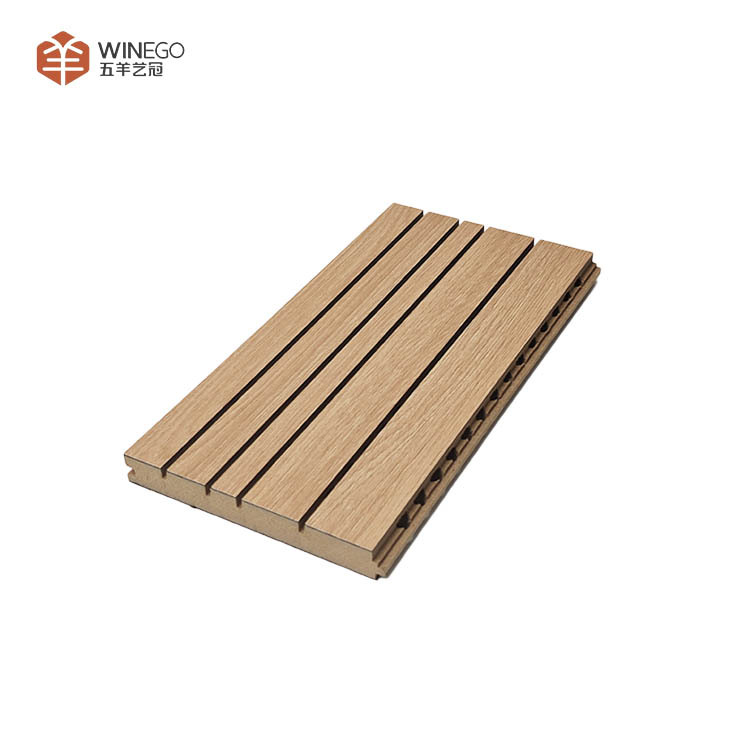

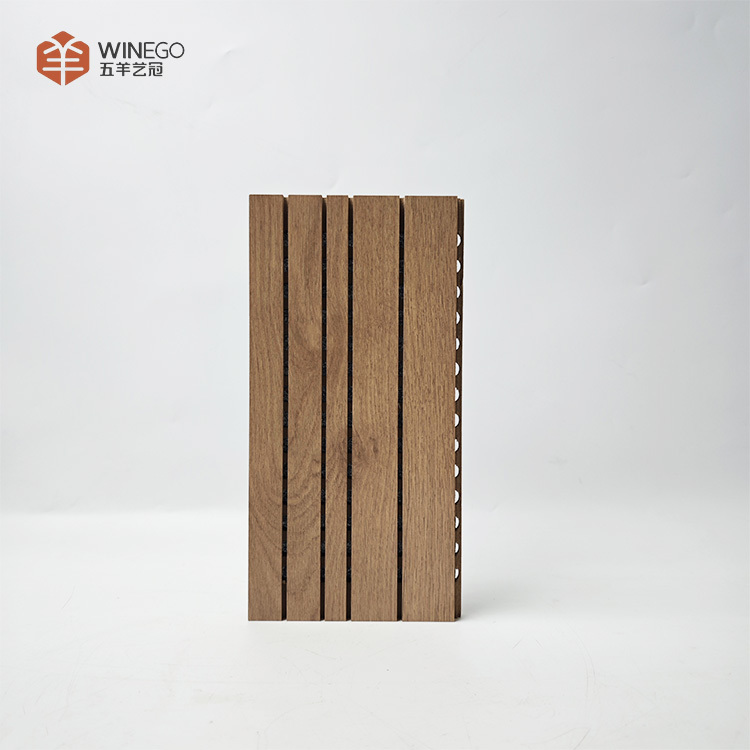

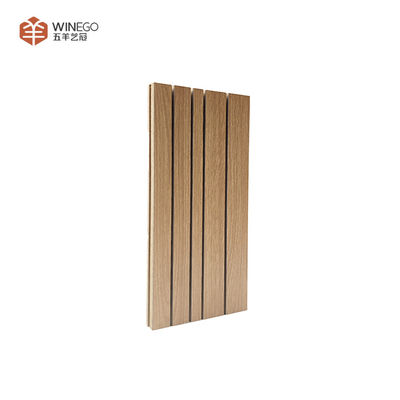

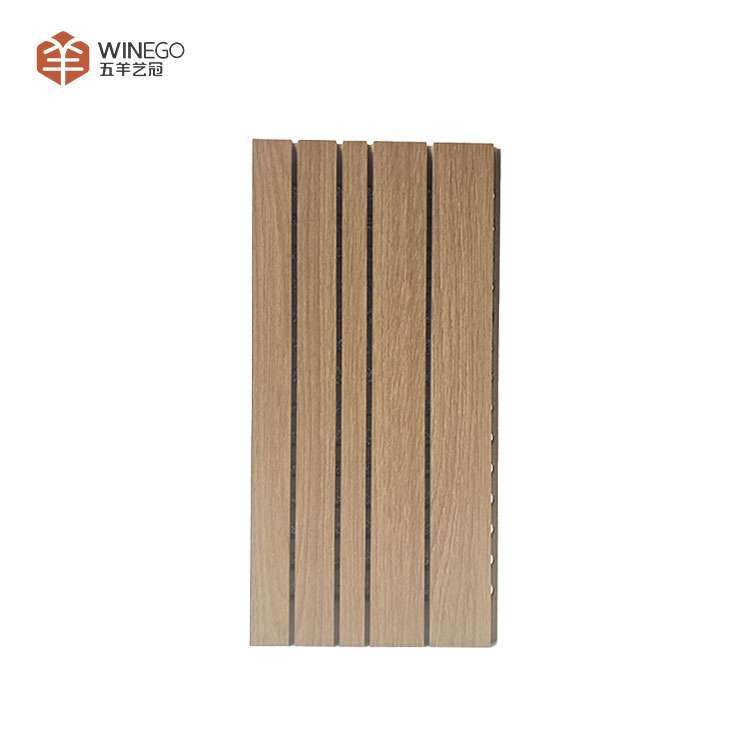

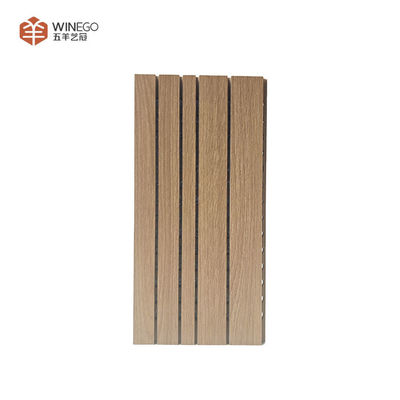

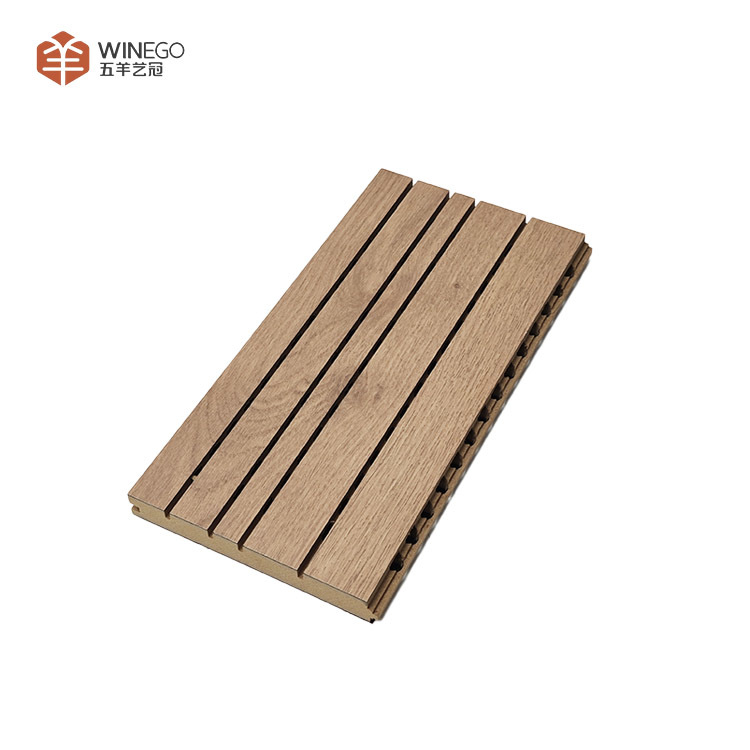

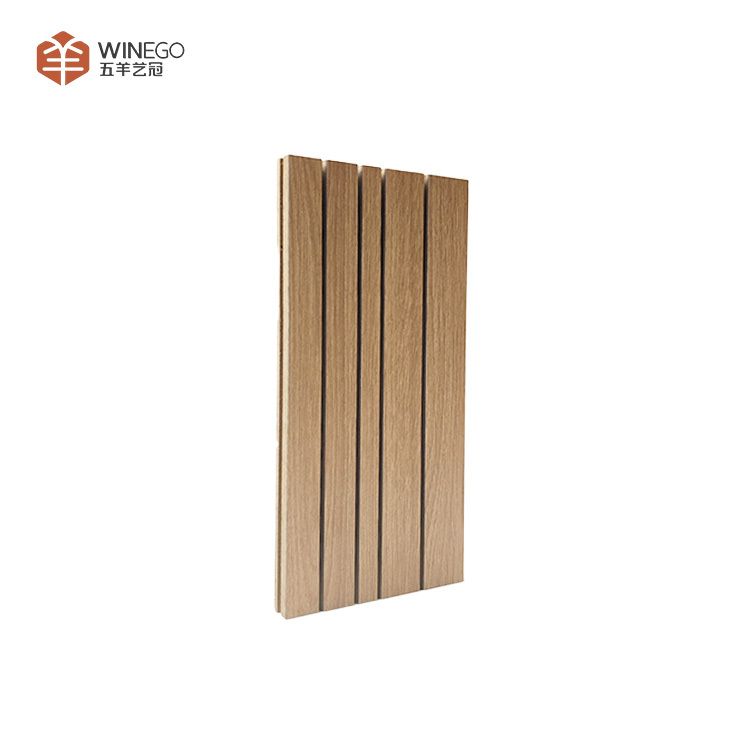

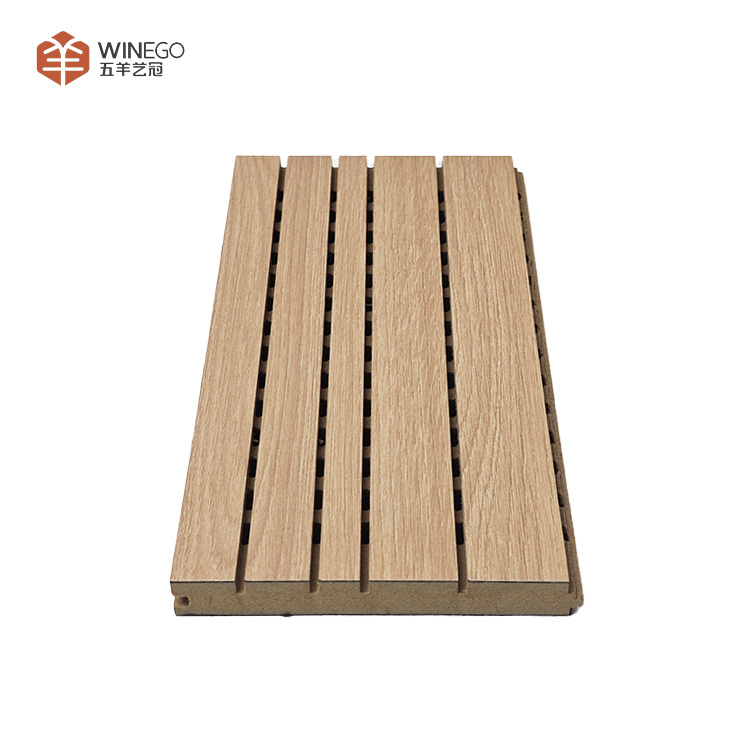

Premium Fire-Rated Grooved Acoustic Panels for High-Performance Sound Spaces
Description:
Crafted with precision and engineered for performance, these grooved acoustic panels offer an exceptional combination of sound control and safety. Designed for spaces demanding both style and acoustic optimization, they feature a grooved surface for effective sound diffusion and absorption. Ideal for theaters, studios, offices, and high-end commercial interiors, the panels are built from sustainable materials and customizable in finish and configuration.
Product Features:
• Excellent sound absorption performance (NRC up to 0.85)
• Certified to BS476 Part 7 Class 1 for fire safety
• Wide range of textures, veneers, and colors
• Environmentally responsible materials and production
• Suitable for wall and ceiling installations in various sound-sensitive environments
Specificatins:
| Name | Grooved MDF Wood Fiber Acoustic Panel |
| Base Materials | MDF/FR MDF/HDF |
| Finish | Veneer/Melamine/HPL fire-proof |
| Model | GA-13/3 |
| Size | W 133/197*L 2440mm |
| Environmental protection | E1 or E0 |
| Warranty | 2years |
| Installation | Nail gun / Keel |
| MIN. order quantity | 200 SQM |
| Packing details | 10pcs per CTN CTN size: 2490*150*180mm |
| Delivery time | 3 weeks |
| Original place | Guangzhou,China |
| Payment term |
TT :50% deposit Balance before shipment |
| Additional service | OEM |
| NRC | 0.85 |
| Certificate | CE,FSC,France A+,ASTM-E84 1,BS476 PART7 |
| Brand | Winego |
Application:
Multi-functional hall
Conference room
Auditorium
Opera house
Concert hall
TV Station
Music hall
Piano room
Installation Instructions:
Method A:
-
Attach the keel to the wooden battens using gun nails.
-
Secure the panels by inserting clips into the keel.
-
Begin installation from the bottom left, working your way up and to the right.
-
Adjust the clips as necessary to ensure proper alignment.
-
Maintain a 3mm gap between the edges of each panel.
Method B:
-
Level the wall with wooden battens.
-
Fill the space with fiberglass acoustic wool for added sound absorption.
-
Secure the panels onto the battens using gun nails.
FAQ:
1. What sizes are available?
- Standard sizes are 133*2440 mm and 197*2440 mm with thicknesses of 12mm, 15mm, and 18mm.
2. What materials are the panels made from?
- Options include MDF, MgO boards, carbon fiber boards, and solid wood.
3. Can I customize the panel finishes?
- Yes, finishes can be customized with melamine, veneer, HPL, and more.
4. What is the NRC of these panels?**
- The NRC can reach up to 0.9, providing excellent sound absorption for both commercial and privated space.
