Round Hole Structure Acoustic Perforated Wood Panels 2400mm 0.9NRC CE FSC
| Place of Origin | Guangzhou,china |
|---|---|
| Brand Name | WINEGO |
| Certification | CE,FSC,France A+ |
| Model Number | PAV32/6/15、PAE24/8/15、PAE16/8/15、PAE16/6/15、PAE16/3-10/15、PAE12/6/15,other customized model |
| Minimum Order Quantity | 100 PCS |
| Packaging Details | W600mm*L1200mm*T 15mm: 6 pieces per pack,the size of the single package is W615m*L1240mm*T130mm,46kg per pack. W600mm*L1200mm*T 12mm: 8 pieces per pack,the size of the single package is W1340m*L2540mm*T740mm,98kg per pack. W1200mm*L2400mm*T 15mm: 1 pieces |
| Delivery Time | 2 weeks |
| Payment Terms | TT :50% deposit Balance before shipment |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | round hole acoustic perforated wood panels,2400mm acoustic perforated wood panels,0.9nrc acoustic perforated wood board |
||
|---|---|---|---|
Product Description

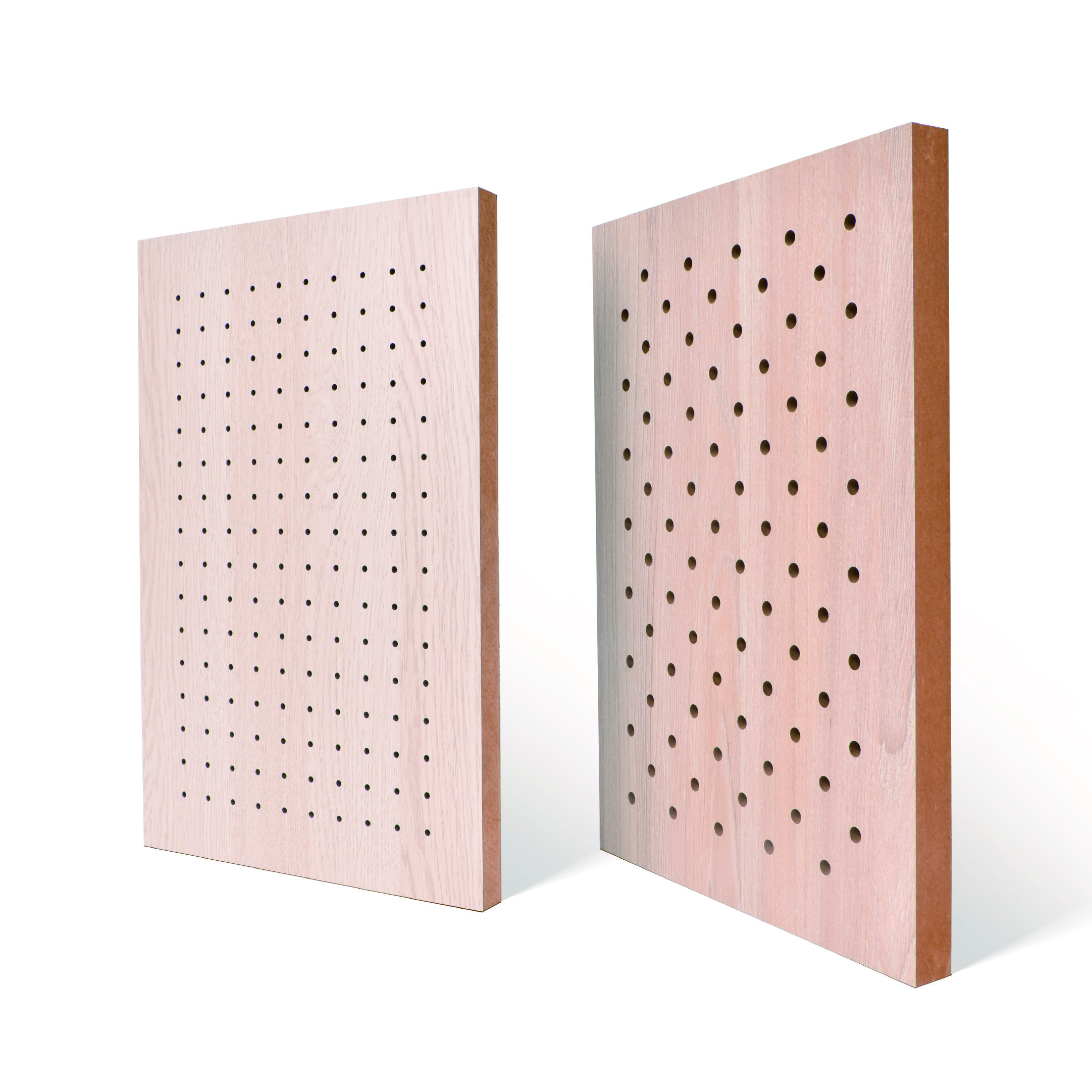

NAME: PERFORATED ACOUSTIC WOOD PANEL HIGH-END ACOUSTIC DAMPING PANEL 2400MM
Description:

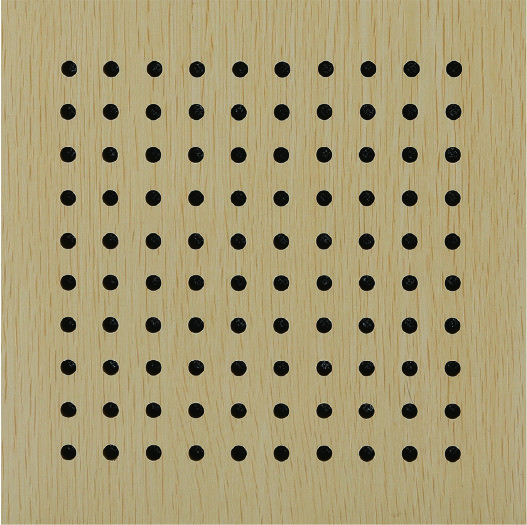

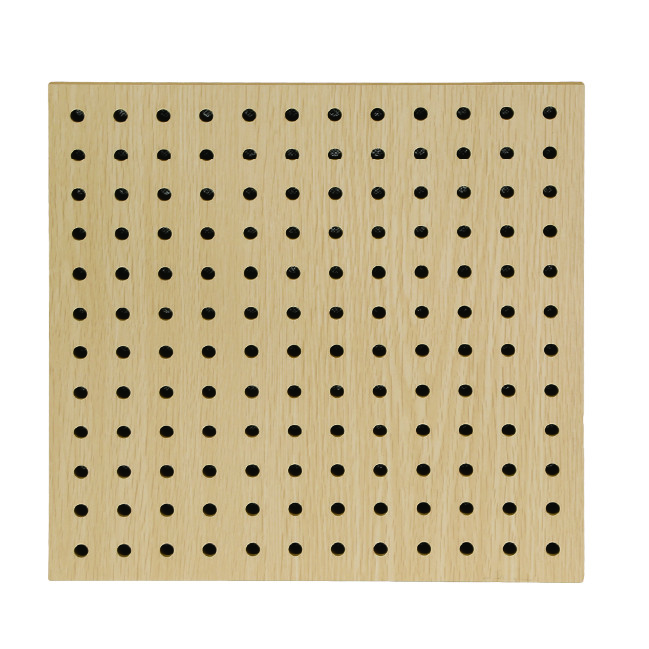

The perforated acoustic panel has round hole structure on the front and back of the board basing on scientific calculation and acoustic principle.The sound absorption effect is obvious for medium and low frequencies.It has various finish colors and materials choice to meet customer’s diversified requests for acoustic and decoration and provide safety promise for environment protection and fire-resistant.
Feature:
Superior sound absorption(NRC:0.9)
E1 grade eco-friendly
A grade fire-resistant
Easy to install on ceilings and walls
The dual role of sound-absorbing decoration with a wide selection of finishes and high quality panels
Specifications:
| NAME | PERDORATED ACOUSTIC PANEL |
| FINISH | VENEER/MELAMINE/HPL FIRE-PROOF/ECO-FRIENDLY PAINT |
| BASE MATERIALS | MDF/A GRADE MGO/SOLID WOOD |
| COLOR CHOICE |
WY-NV01S White Oak Straight Grain WY-NV02M White Oak Mountain Grain WY-NV04M Maple Mountain Grain WY-EV02S Whitewash White Oak |
| MODEL | PAV32/6/15,PAE24/8/15,PAE16/8/15,PAE16/6/15,PAE16/3-10/15,PAE12/6/15,other customized model |
| Size |
W600mm*L600*1200/2400mm*T12/15/18mm W1200mm*L600*1200/2400mm*T12/15/18mm
|
| environmental protection | E1 |
| warranty | 5 years |
| INSTALL | KEEL AND CLIPS/NAIL GUN |
| MIN.ORDER | 100 PCS |
| PACKAGE DETAILS |
W600mm*L1200mm*T 15mm: 6 pieces per pack,the size of the single package is W615m*L1240mm*T130mm,46kg per pack. W600mm*L1200mm*T 12mm: 8 pieces per pack,the size of the single package is W1340m*L2540mm*T740mm,98kg per pack. W1200mm*L2400mm*T 15mm: 1 pieces per pack,the size of the single package is W1220m*L2445mm*T35mm,35.8kg per pack.
LOGO service for big order |
| Delivery time | 2 weeks |
| Original place | Guangzhou,china |
| Payment term |
TT :50% deposit Balance before shipment
|
| Additional service | OEM |
| NRC | 0.9 |
| Certificate | CE,FSC,France A+ |
| Brand | WINEGO |
Application:
Multi-function hall
Opera house
Conference room
Cinema
Auditorium
Hotel
TV station
Concert hall
Piano room
Gymnasium
Villa
Or places with strict acoustic requirements in home life
Install method:
WALL INSTALLATION
Method A:Wood battens installation system
Step 1:Fix the wood battens to level the wall(spacing at 400-600mm).
Step 2:Fill in fiberglass acoustic wool between wood battens.
Step 3:Fix the perforated acoustic panel on the wood battens with gun nails,and insert the wooden slat into the side groove.
Step 4:Repeat until the installation is completed, the joints between the panels are generally recommended to be 3-5mm, and the nailing position is on the side of the panel.
Step 5:Installation completion effect.
Method B:Keel systems installation
Step 1:Fix side keel WY-009 on the wood battens and light steel keel with gunnail and screws.
Step 2:Fix the WY-008 main keel at the two ends of installation area. It is recommended to keep 3-5mm gap during installation.
Step 3:Move the side groove along WY-008 andWY-009 direction from left to right and bottom to top.
Step 4:For solid wood and natural veneer, if the wood grain pattern is required, it must be numbered in advance and installed following numbers.
SUSPENDED CEILING INSTALLATION SYSTEM
Method A:Exposed Ceiling SC-E
Step 1:L hanger fixed with suspension rod and T-type main tee,then clip in cross tee and fix corner.
Step 2:Installation of exposed ceiling.
Step 3:Installation completion.
Method B:Tegular Ceiling SC-T
Step 1:L hanger fixed with suspension rod and T-type main tee,then clip in cross tee and fix corner.
Step 2:Installation of tegular ceiling.
Step 3:Installation completion.
Method C:Concealed Ceiling SC-C
Step 1:L hanger fixed with suspension rod and T-type main tee,then clip in cross tee and fix corner.
Step 2:Installation of concealed ceiling.
Step 3:Installation completion.
FAQ:
Q1. Can I have a sample order for perforated acoustic panel?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,15 ~21working days for mass production.
Q3. Do you have any MOQ limit for wood slat acoustic panel?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive.
Cargo will ship by sea shipping or airline according to customer request and order quantity. It takes 2weeks or 4weeks as per the destination.
Q5. How to proceed an order for perforated acoustic panel?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on your package ?
A: Yes. Please inform us formally before our production.
If your quantity reach to 1000pcs,we will provide free logo service.
And less quantity ,we provide charge service.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A:Firstly, Our products are produced in strict quality control system.
Secondly, during the guarantee period, we will send new panels with new order for small quantity. For defective batch products, we will discuss the solution according to real situation.
Q9: How to install the perforated acoustic panel?
A:Our perforated acoustic panel can be installed on the wall and ceiling, and the wall can be installed with wood slat install method, keel systems install method and hanging keel system installation. The ceiling can use the exposed ceiling system,tegular ceiling system and concealed ceiling system.
Q10:Any certificate for perforated acoustic panel
A:FSC.CE,France A+
